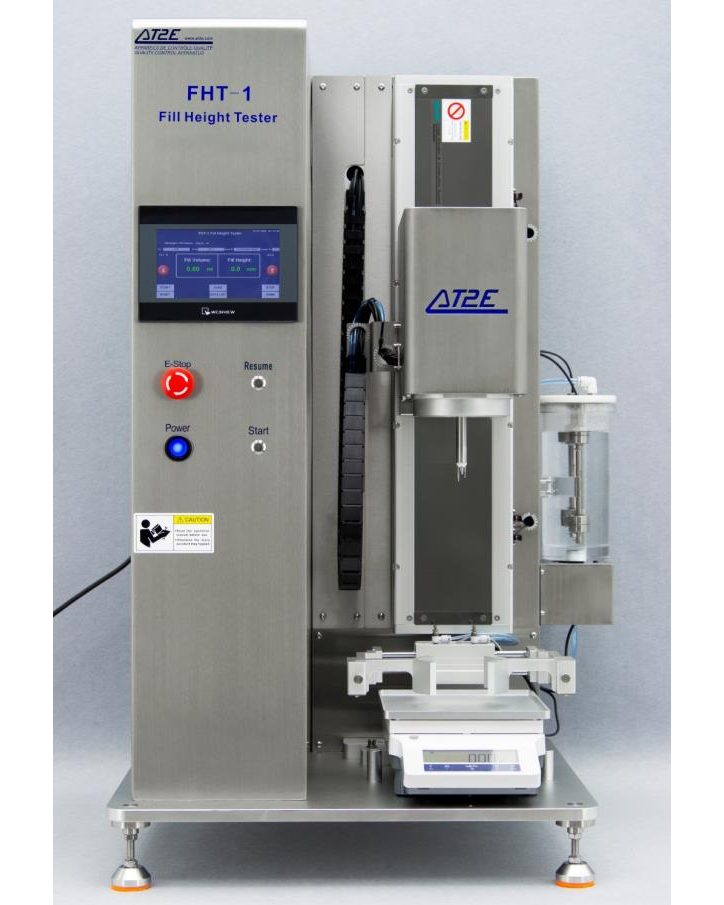

FHT-1 / FHTT-1 Fill Height Tester

AT2E · Ferrieres-en-Brie, France · Fill testing

Measures fill height and fill volume of bottles.

Get a quote for this equipmentCotizar este equipo

Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.

ApplicationsAplicaciones

Products and applicationsProductos y aplicaciones

Beverage quality control

IndustriesIndustrias

BreweryBeverage plantPackaging

FeaturesCaracterísticas

Auto detection of bottle height, liquid level, fill volume, etc.
Auto water temperature monitoring and recording
Auto volume correction according to water density and temperature relation
Auto record and display measure results

SpecificationsEspecificaciones

Specifications from AT2E
Detail	Sample range
Measure range	0 - 3000 ml (other range by order)
Balance weighing range	0 - 5000 g (other range by order)
Height resolution	0.1 mm
Volume resolution	0.01 ml
Accuracy	±0.5% F.S.
Air supply	5 - 8 bar
Power supply	AC 220V (AC 110V optional)

Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.

ManufacturerFabricante

AT2E

Ferrieres-en-Brie, France · est. 1989 · 30+ resellers in 30+ countries
