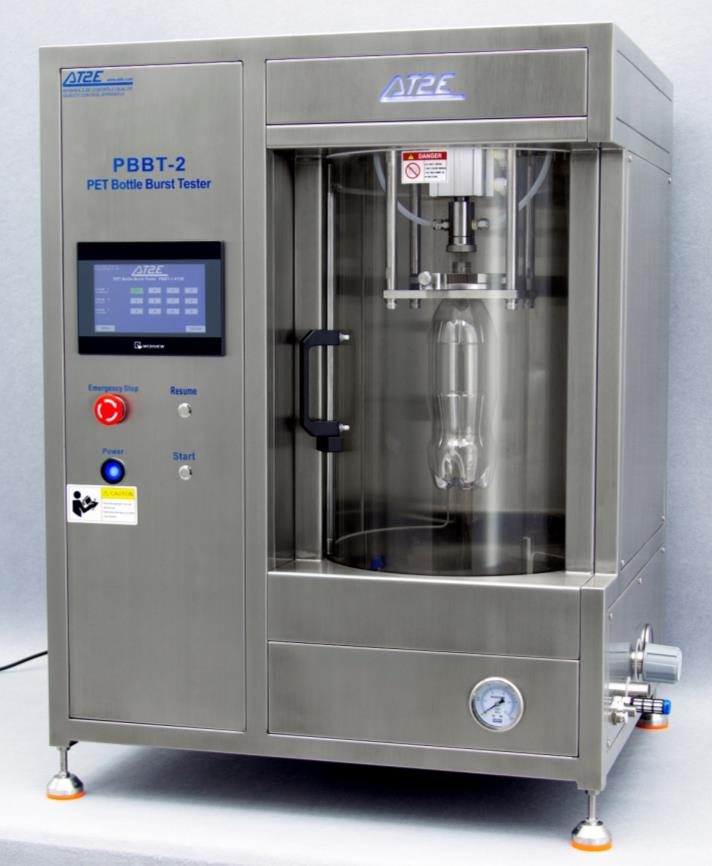

PBBT-2 PET Bottle Burst Tester

AT2E · Ferrieres-en-Brie, France · Burst testing

Tests the internal pressure resistance of PET bottles using fill ramp, burst and custom modes.

Get a quote for this equipmentCotizar este equipo

Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.

ApplicationsAplicaciones

Products and applicationsProductos y aplicaciones

Beverage quality control

IndustriesIndustrias

BreweryBeverage plantPackaging

FeaturesCaracterísticas

Standard equipment for the PET bottle industry.
3 commonly used industry's test methods are available
PLC integrated & Touch screen control
Automatic sealing and filling system

SpecificationsEspecificaciones

Specifications from AT2E
Measuring range	0 - 20 bar
Accuracy	±0.5% F.S.
Resolution	0.01 bar
Pressure Unit	bar, psi
Sample range	max. Dia. 130mm, max. Height 360mm
Sample volume	Up to 3 L bottle (larger by order)
Expansion in volume	Up to 3 L (larger by order)
Compatible clamping system	Neck dia. 25 - 38 mm

Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.

ManufacturerFabricante

AT2E

Ferrieres-en-Brie, France · est. 1989 · 30+ resellers in 30+ countries
