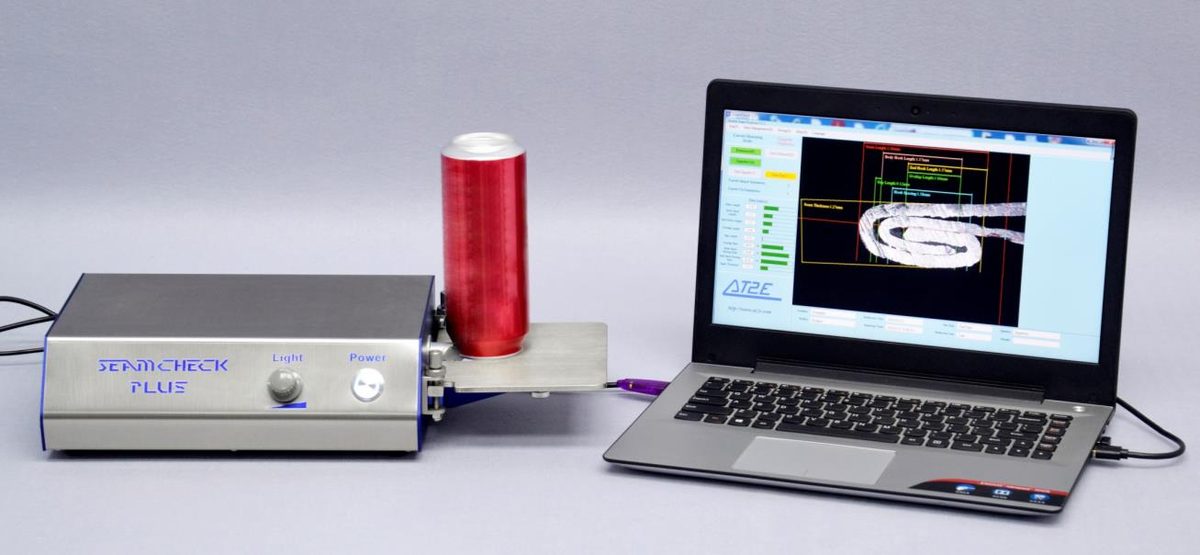

SeamCheck Plus Automatic Double Seam Projector

AT2E · Ferrieres-en-Brie, France · Can testing

Image-based system that measures can double seams automatically.

Get a quote for this equipmentCotizar este equipo

Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.

ApplicationsAplicaciones

Products and applicationsProductos y aplicaciones

Beverage quality control

IndustriesIndustrias

BreweryBeverage plantPackaging

FeaturesCaracterísticas

Automatic line positioning (auto-measure function), measurement will be done in 1 second
Software adopted database management system, measuring results and images can be saved in the database and
9 measuring parameters: Seam Length, Body Hook Length, End Hook Length, Overlap, Seam gap, Overlap rate,

SpecificationsEspecificaciones

Specifications from AT2E
Power supply	100 - 240 V / 50 - 60 Hz
Device power supply	DC 5V / 1A
Video signal interface	USB 2.0
Resolution	0.01 or 0.001mm
Accuracy	0.005 mm
Magnification factor	60 X
Line positioning magnification factor	180 X
Seam Thickness range	0 - 2.6 mm (other range by order)

Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.

ManufacturerFabricante

AT2E

Ferrieres-en-Brie, France · est. 1989 · 30+ resellers in 30+ countries
