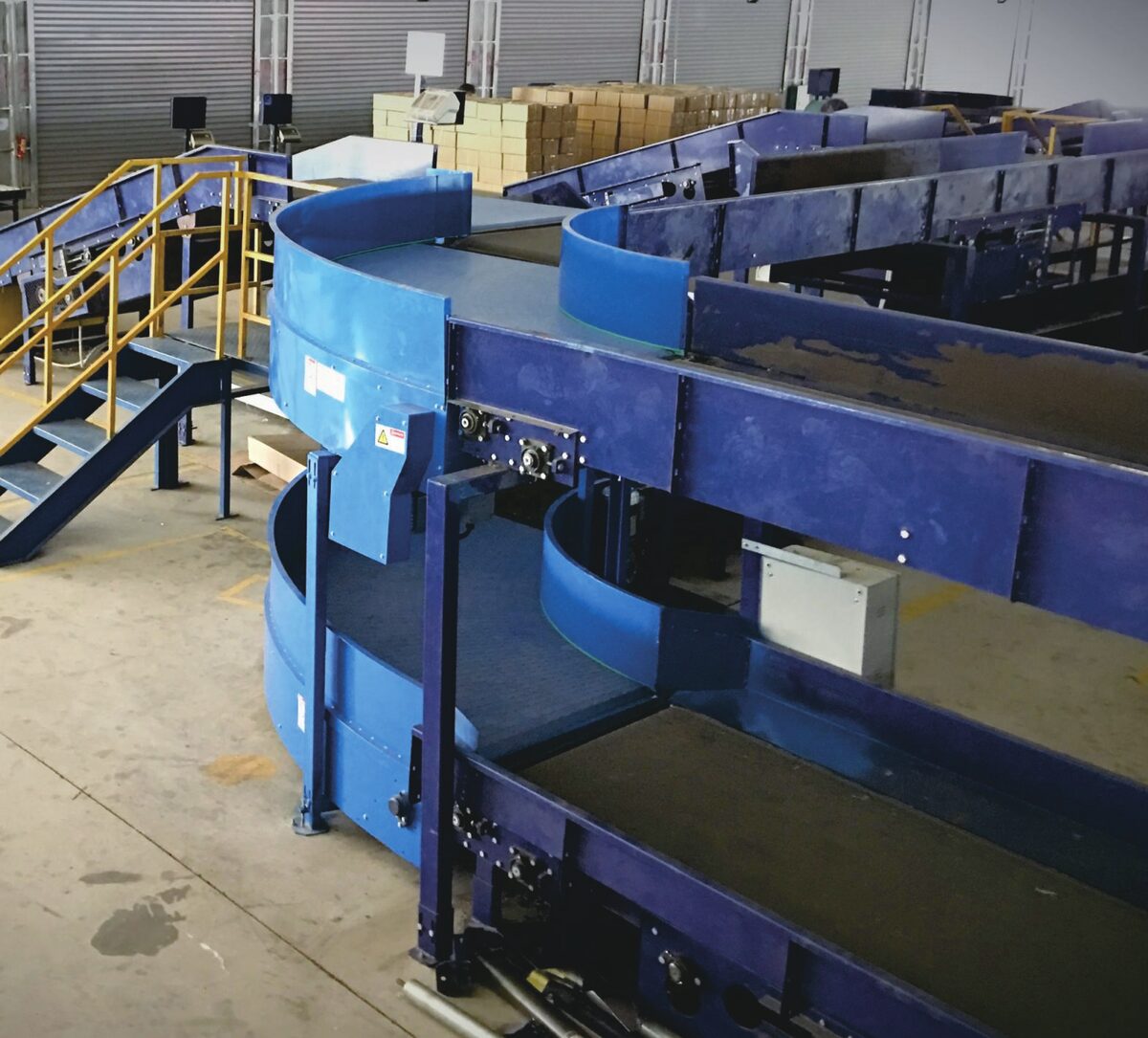

Modular Flat Plate Curve Conveyor
Hong's Belt (iConvey) · Shenzhen, Guangdong · Conveyor systems
Curve conveyor with a modular flat-plate belt driven by sprockets, one-minute module replacement.
Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.
ApplicationsAplicaciones
Products and applicationsProductos y aplicaciones
Parcel and package handlingWarehousing
IndustriesIndustrias
BreweryBeverage plant
FeaturesCaracterísticas
- Modular belt design, belt modules replaced individually
SpecificationsEspecificaciones
| Belt model | HS-2000A |
|---|---|
| Conveying load | 350 kg |
| Conveying speed | 0.4 to 0.8 m/s |
| Curve angles | 30, 45, 60, 90, 180 degrees |
| Centre radius | 1607 mm, 1707 mm |
| Curve inner radius | 600, 800, 1000, 1100 mm |
| Conveying width | 800, 1000, 1200 mm |
Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.
