1873 Snap-On Side-Flexing Plastic Chain
ConveyorTransportador

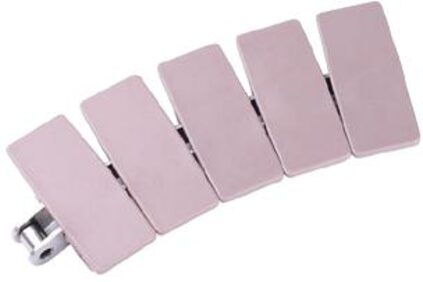

1873 Snap-On Side-Flexing Plastic Chain

Lilai Chain · Shanghai · Plastic chains

Snap-on plastic plates on a roller chain for side-flexing conveyors.

2 models in this family:2 modelos en esta familia: 1873, 1873-G4

Get a quote for this equipmentCotizar este equipo

Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.

ApplicationsAplicaciones

Products and applicationsProductos y aplicaciones
Bottle and can conveyingPackaging lines
IndustriesIndustrias
BreweryBeverage plant
FeaturesCaracterísticas
  • Plastic or steel table-top chain
  • Matching sprockets and corner tracks available

SpecificationsEspecificaciones

Specifications from Lilai Chain
Plate materialPOM
ColorCoffee
Base chainRoller chain, carbon steel or stainless steel
Working load3200 N (carbon steel), 1600 N (stainless)
Max conveying length30 m (carbon steel), 24 m (stainless)
Max speed50 m/min lubricated, 30 m/min dry

Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.

ConfigurationsConfiguraciones

Available models in this family. Choose one above to add it to your quote, or describe your plant.Modelos disponibles en esta familia. Elija uno arriba para agregarlo a su cotización, o describa su planta.

18731873-G4
