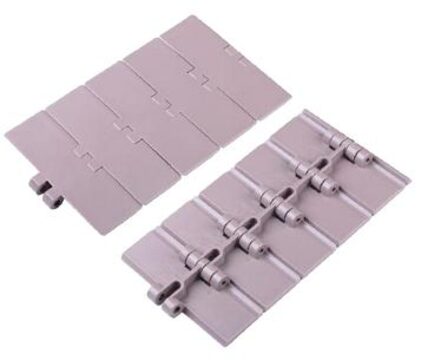

820 Single-Hinge Plastic Chain

Lilai Chain · Shanghai · Plastic chains

Single-hinge POM table-top chain for straight running bottle and can conveyors. Versions with flights, anti-static and 820G.

4 models in this family:4 modelos en esta familia: 820, 820-DB with flight, 820 anti-static, 820G

Get a quote for this equipmentCotizar este equipo

Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.

ApplicationsAplicaciones

Products and applicationsProductos y aplicaciones
Bottle and can conveyingPackaging lines
IndustriesIndustrias
BreweryBeverage plant
FeaturesCaracterísticas
  • Plastic or steel table-top chain
  • Matching sprockets and corner tracks available

SpecificationsEspecificaciones

Specifications from Lilai Chain
MaterialPOM
Pin materialStainless steel
Work temperature-30 to 90 C
Max speed50 m/min lubricated, 30 m/min dry
Working load (25 C)1230 N
Max length12 m
Width63.5 to 190.5 mm
Weight0.69 to 1.44 kg/m
Backflex radius50 mm

Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.

ConfigurationsConfiguraciones

Available models in this family. Choose one above to add it to your quote, or describe your plant.Modelos disponibles en esta familia. Elija uno arriba para agregarlo a su cotización, o describa su planta.

820820-DB with flight820 anti-static820G
