880TAB Side-Flexing Plastic Chain
ConveyorTransportador

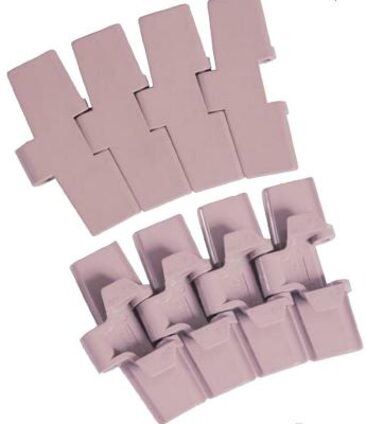

880TAB Side-Flexing Plastic Chain

Lilai Chain · Shanghai · Plastic chains

Side-flexing POM chain that runs through curves, with TAB, flat-pin, bevel, magnetic and small-radius versions.

6 models in this family:6 modelos en esta familia: 880TAB, 880TAB anti-static, 880 flat pins, 880 bevel, 880M magnetic, 880TAB-RT small radius

Get a quote for this equipmentCotizar este equipo

Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.

ApplicationsAplicaciones

Products and applicationsProductos y aplicaciones
Bottle and can conveyingPackaging lines
IndustriesIndustrias
BreweryBeverage plant
FeaturesCaracterísticas
  • Plastic or steel table-top chain
  • Matching sprockets and corner tracks available

SpecificationsEspecificaciones

Specifications from Lilai Chain
Chain materialPOM
Pin materialStainless steel
ColorBrown
Work temperature-40 to 90 C
Max speed80 m/min lubricated, 50 m/min dry
Working load (25 C)2100 N
Max length12 m
Width82.6 and 114.3 mm
Backflex radius75 mm
Sideflex radius500 mm

Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.

ConfigurationsConfiguraciones

Available models in this family. Choose one above to add it to your quote, or describe your plant.Modelos disponibles en esta familia. Elija uno arriba para agregarlo a su cotización, o describa su planta.

880TAB880TAB anti-static880 flat pins880 bevel880M magnetic880TAB-RT small radius
