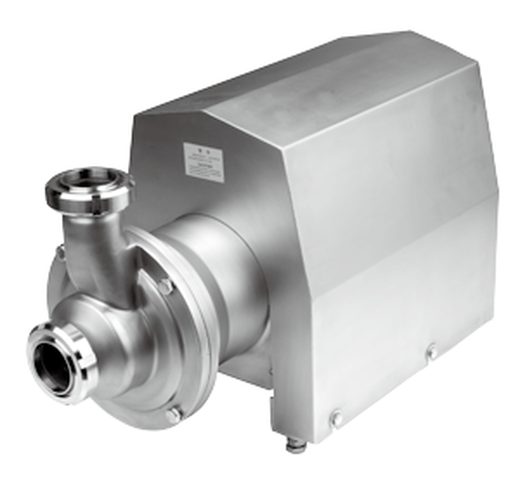

Self-Priming CIP Return Pump
Pump / valveBomba / válvula

Self-Priming CIP Return Pump

Santhai Valve · Wenzhou, Zhejiang · Sanitary pumps

Self-priming positive displacement pump for CIP return and low-level suction. Moves liquid mixed with air or foam.

Key specificationsEspecificaciones clave

FlowCaudal
up tohasta40 m³/h176 gpm
MaterialMaterial
304/316L304/316L

This listing covers a family of models. Values marked "up to" are the family maximum, not every model's specification.Esta ficha cubre una familia de modelos. Los valores con "hasta" son el máximo de la familia, no la especificación de cada modelo.

3 models in this family:3 modelos en esta familia: 20T, 30T, 40T

Get a quote for this equipmentCotizar este equipo

Free to request. A specialist replies in English or Spanish with pricing for your configuration and destination.Cotizar es gratis. Un especialista responde en inglés o español con precios para su configuración y destino.

ApplicationsAplicaciones

Products and applicationsProductos y aplicaciones
CIP returnLow-level suction
IndustriesIndustrias
BreweryBeverage plantDairyPharma
FeaturesCaracterísticas
  • Self-priming
  • Handles air and foam

SpecificationsEspecificaciones

Specifications from Santhai Valve
Models20T/24M, 30T/24M, 40T/36M
Flow20, 30, 40 t/h
Head24, 24, 36 m
Suction lift5-6 m
SealMechanical seal
Max liquid temperature100 C
Material304/316L

Final specifications are confirmed in your quote.Las especificaciones finales se confirman en su cotización.

ConfigurationsConfiguraciones

Available models in this family. Choose one above to add it to your quote, or describe your plant.Modelos disponibles en esta familia. Elija uno arriba para agregarlo a su cotización, o describa su planta.

20T30T40T
